Laser Alignment

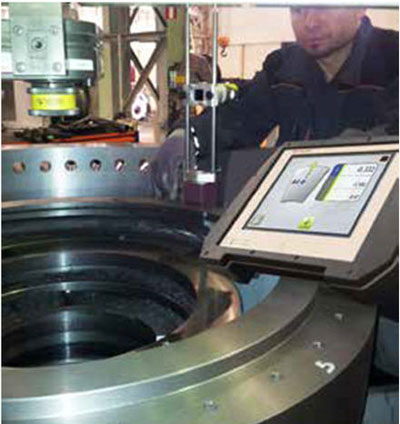

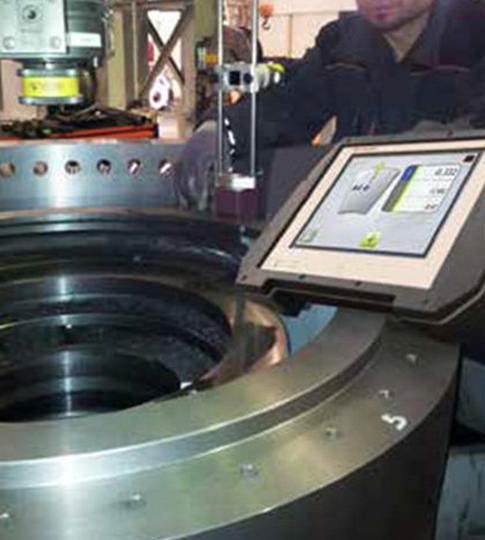

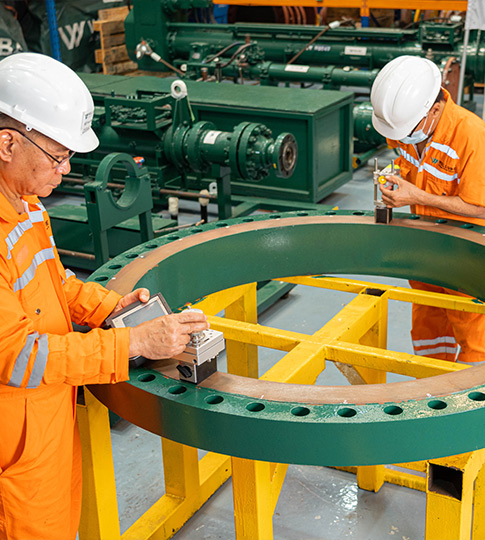

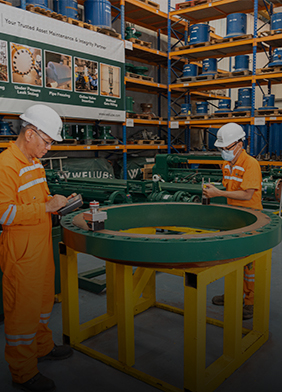

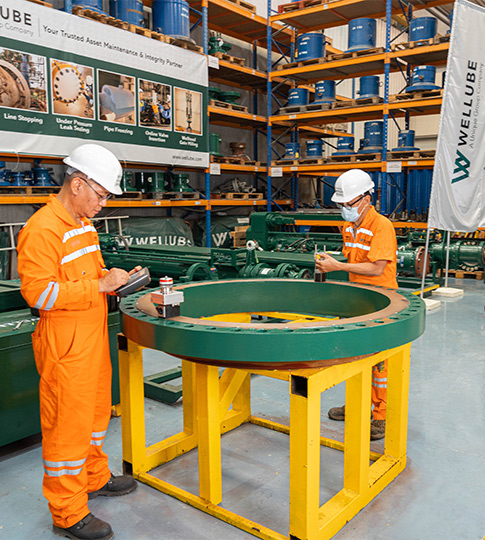

Laser alignment for flatness checking.

Laser Alignment Services by Wellube To Maximize Machinery Output

One business stands out as a true authority in precision machining and on-site solutions in the ever-evolving field of industrial engineering services: Wellube. Wellube has established itself as a reliable partner for businesses looking for top-notch engineering solutions thanks to a long history of excellence and a reputation for producing outstanding outcomes.

In this blog, we will cover the realm of Laser Alignment, a cutting-edge technology that Wellube utilises to produce industrial machinery with unmatched precision and efficiency. We’ll review the fundamentals, benefits, and practical uses of laser alignment to show how Wellube’s know-how in this area transforms industrial maintenance and fosters operational excellence. Learn the secrets of laser alignment and how it enables industries to prosper in today’s cutthroat environment.

What is Laser Alignment?

In various industrial applications, laser alignment is a sophisticated and accurate technology used to guarantee the precise alignment of machines and components. It uses laser beams to measure and find alignment errors between two or more sites. The laser alignment procedure uses optics and geometry concepts to detect misalignments, rectify them, and ensure that the gear performs at its best.

A laser emitter and detector are used to orient the laser, frequently fastened to a moving target or reflective surface. Any misalignments cause the laser beam, which is generated from the source and is pointed toward the detector, to deviate from its intended course. Accurate misalignment measurements can be made by examining the laser beam’s displacement.

Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Laser Alignment
Services > Laser Alignment

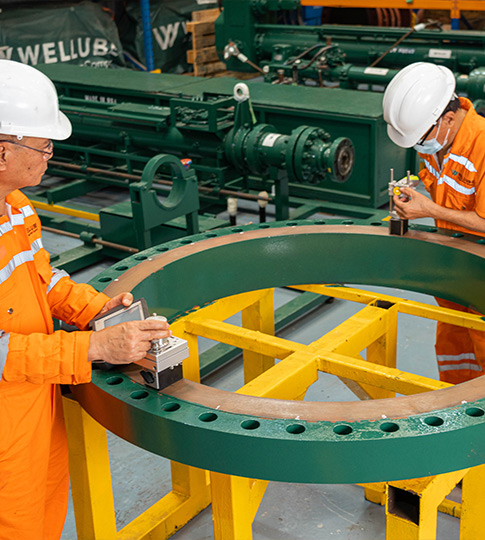

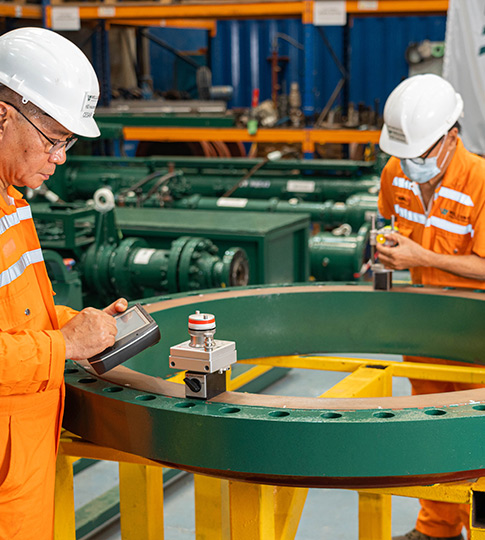

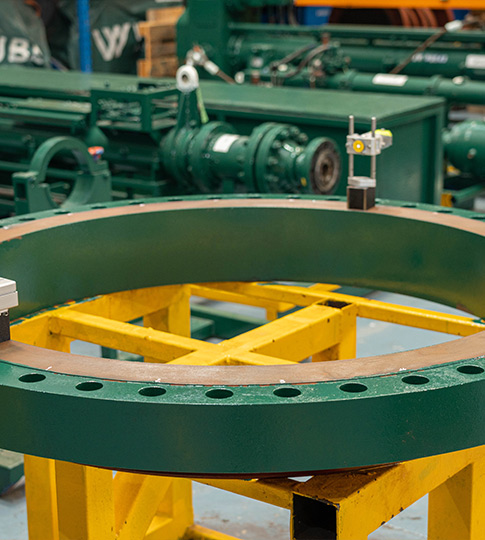

We provide a complete service for measuring large surfaces’ flatness.

It is ideal for any equipment to be checked for flatness faults before it’s installed. With the use of laser alignment, it ensures the equipment meets optimal operation conditions.

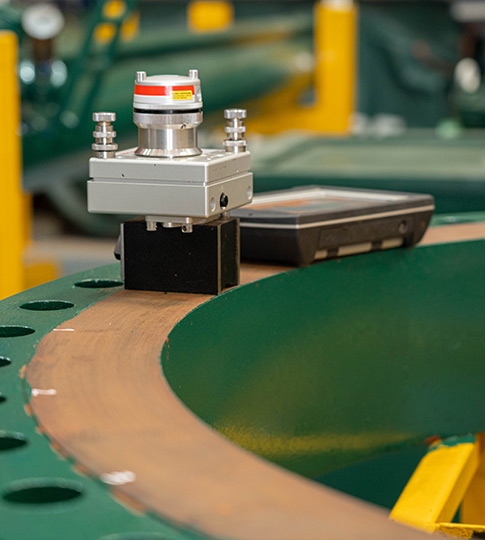

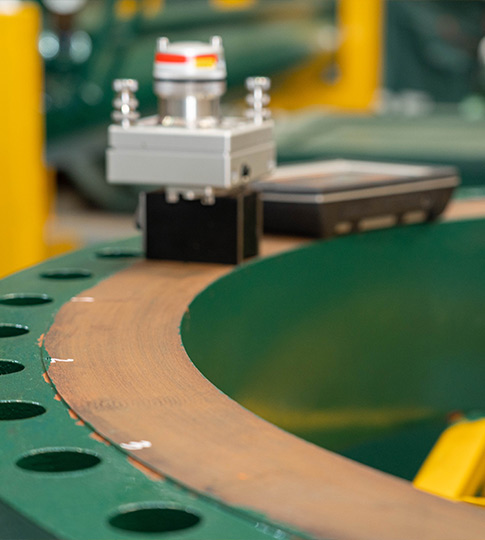

Laser level for leveling and determining flatness involves sweeping a laser beam horizontally, making a perfectly horizontal ‘plane of sight’ known as a waterline. This allows flatness to be determined within a few thousands of an inch, over distances of hundreds of feet.

Enquire Now Download Data Sheet
Hot tapping services

Specifications

By using our laser alignment system, your requirements are met on both accuracy and repeatability, thus increasing the lifetime of your equipment.

Any adjustments that can be made to the foundation or base plate being measured can be viewed on the system in real time, thereby minimizing downtime.

All results are stored for filing, traceability, and quality assurance requirements.

Applications

Used across the petrochemical, oil & gas, power generation, gas distribution, and nuclear industries.

How is Laser Alignment differ from Traditional Alignment?

Contrary to conventional alignment techniques, which may rely on hand measurements, visual assistance, or simple equipment, laser alignment comes with several distinct benefits. While traditional methods can be useful in some circumstances, laser alignment raises accuracy and effectiveness to an entirely new plane.

1. Accuracy:

Laser alignment offers exact alignment, frequently to the micrometer or even sub-micrometer range. This degree of accuracy ensures that equipment runs as efficiently as possible and reduces wear on vital parts.

2. Non-Contact Measurement:

Laser alignment is a non-contact measurement technique, which means the measuring tools do not physically contact the equipment being evaluated. This non-invasive method reduces the possibility of delicate equipment being harmed while being aligned.

3. Real-time data:

Laser alignment systems provide measurement input in real-time, enabling quick modifications. Operators can immediately observe the results of alignment changes thanks to this dynamic feedback, which makes quick modifications possible.

4. Remote Measurements:

Some laser alignment systems have a remote control feature that makes it possible to take measurements from a distance or even in dangerous or challenging-to-reach areas. This function improves alignment process efficiency and safety.

9

10

Benefits of Laser Alignment

Laser alignment is an essential tool for companies that need precise machinery alignment since it has many advantages over conventional alignment techniques.

Time Efficiency: Compared to traditional methods, laser alignment greatly shortens the time needed for alignment activities. This benefit of saving time results in less downtime and more productivity.

Enhanced Reliability: Laser alignment’s high degree of accuracy and in-the-moment feedback assure consistent and repeatable outcomes, lowering the possibility of rework or alignment-related problems.

Versatility: Laser alignment is a flexible option for many industries since it can be used on various industrial machinery and components, regardless of size or complexity.

Preventive Maintenance: Laser alignment helps with proactive maintenance by identifying and fixing misalignments early, reducing premature wear and expensive breakdowns.

The alignment and maintenance of industrial machinery are revolutionised by laser alignment technology. Laser alignment is a crucial instrument in the quest for operational excellence because of its unmatched precision, efficiency, and adaptability, which enable companies to attain peak performance and dependability.

Understanding Wellube's Laser Alignment Process

Wellube’s Laser Alignment is meticulously designed for accuracy and to ensure machine precision. Here we are sharing the detailed process:

  • Initial Assessment:

    A thorough evaluation of the apparatus or equipment that needs to be aligned kicks off the process. The skilled team at Wellube assesses the particular alignment specifications and spots any potential problems.

  • Preparation and Set-Up:

    The machinery is ready for alignment by being firmly set in place and stable. Wellube’s professionals painstakingly clean and examine the components to obtain precise measurements.

  • Equipment Set-up:

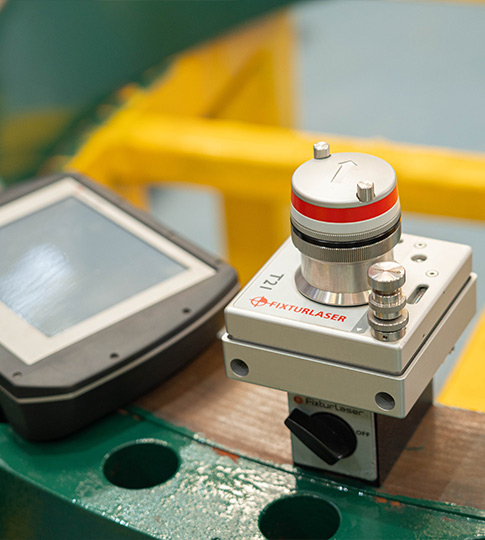

    Wellube uses cutting-edge laser alignment tools, including extremely precise laser emitters and receivers. The tools are set up, calibrated, and positioned in relation to benchmarks.

  • Measurement:

    The target surface or reference points are exposed to a properly aligned laser beam from the laser emitter. The reflected beam is captured by the receiver, allowing alignment errors to be measured.

  • Data Collection and Analysis:

    Wellube’s equipment records and analyse data in real-time. The real-time information provides valuable insights into the current alignment status of the machinery.

  • Alignment and Adjustments:

    The specialists at Wellube modify the machinery precisely based on the data analysis to align it properly. The laser alignment technology provides instant feedback, allowing for quick adjustments.

  • Verification and Final Check:

    The laser alignment procedure is repeatedly measured to confirm accuracy following the necessary changes. Final inspections are performed to ensure that the machinery adheres to the necessary tolerances.

  • Documentation and Reporting:

    Wellube offers thorough alignment reports with “as-found” and “as-left” measurements, along with any advice for ongoing maintenance or potential alignment requirements.

Wellube takes pleasure in using state-of-the-art laser alignment tools from top vendors. Laser alignment systems are preferred because of their remarkable accuracy, dependability, and user-friendly interfaces. With the help of these cutting-edge tools, Wellube’s specialists can make exact measurements and changes, resulting in smooth alignment procedures and excellent results.

In conclusion, the Wellube laser alignment procedure is a highly organised and cutting-edge method for achieving ideal machinery alignment. Wellube, a trusted partner in precision engineering solutions, ensures that industrial machinery performs at peak efficiency, prolongs equipment life, and mitigates potential failures, emphasizing on-site convenience, top-of-the-line equipment, and a team of expert technicians.

Benefits of Laser Alignment from Wellube

  • Improved machinery efficiency and performance;
  • Extend equipment lifespan and reduce maintenance cost;
  • Enhanced workplace safety and compliance;
  • Reduce energy consumption and environmental impact.

Laser alignment services from Wellube offer many advantages that help with increased productivity, decreased maintenance costs, increased safety, and reduced environmental impact. Wellube, a trusted partner for precise engineering solutions, helps companies to achieve optimal performance, increase equipment longevity, and develop sustainable operations by focusing on precision and accuracy in machinery alignment.

Call To Action

Utilise the accuracy of laser alignment to maximise the performance of your industrial machinery and equipment. The state-of-the-art laser alignment solutions from Wellube can increase productivity, prolong the life of your equipment, and guarantee worker safety.

Contact us right away to receive customised laser alignment services that will improve your business operations, lower your maintenance expenses, and help create a more sustainable and greener future.

Why choose Wellube?

Before installing new equipment or re-installing old equipment, it is imperative to check for the base plate’s flatness or foundation and ensure that it is accurately aligned to prevent unnecessary tensions and minimize stresses on the equipment housings.

Using Wellube’s latest laser leveling and alignment system, we provide a complete service to meet all your requirements for measuring large surfaces’ flatness.

With laser alignment, you not only save time and cost but also lengthens the life of your equipment.

Contact our technical expert to find a bespoke solution
